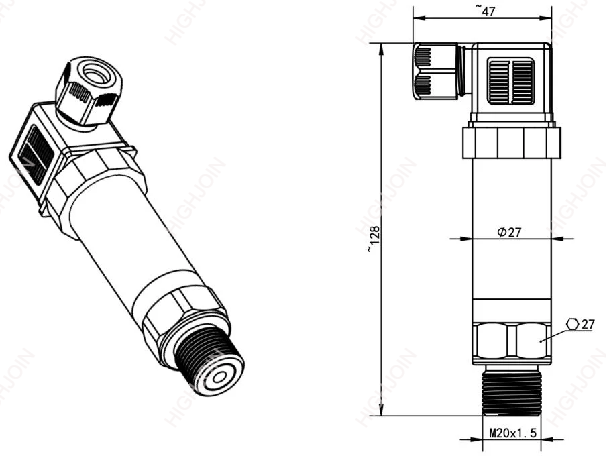

HPM17-RN anti-corrosion pressure transmitter adopts high-performance anti-corrosion ceramic sensor, it uses anti-corrosion plastic as pressure interface, cooperates with electronic conditioning circuit, and is assembled and produced through strict process flow. This product has the characteristics of strong corrosion resistance and wear resistance, and it can complete the pressure measurement and control of corrosive gases, liquids and steam. This product has outstanding anti-corrosion ability, and its full-plastic structure design perfectly copes with the pressure measurement of various corrosive media. It is widely used in the fields of chemical industry, environmental protection, water treatment and scientific research experiments.
HPM17-RN anti-corrosion pressure transmitter adopts high-performance anti-corrosion ceramic sensor, it uses anti-corrosion plastic as pressure interface, cooperates with electronic conditioning circuit, and is assembled and produced through strict process flow. This product has the characteristics of strong corrosion resistance and wear resistance, and it can complete the pressure measurement and control of corrosive gases, liquids and steam. This product has outstanding anti-corrosion ability, and its full-plastic structure design perfectly copes with the pressure measurement of various corrosive media. It is widely used in the fields of chemical industry, environmental protection, water treatment and scientific research experiments.
Application
Chemical processing
Environmental services
Water purification
Laboratory studies
Application
Chemical processing
Environmental services
Water purification
Laboratory studies
Features
Tantalum diaphragm, titanium diaphragm, or ceramic core with excellent corrosion resistance
Resilient against shocks, vibrations, and abrasion
Various interfaces, output options, and outlet methods, enabling extensive applications
Well-suited for diverse and demanding environments
Features
Tantalum diaphragm, titanium diaphragm, or ceramic core with excellent corrosion resistance
Resilient against shocks, vibrations, and abrasion
Various interfaces, output options, and outlet methods, enabling extensive applications
Well-suited for diverse and demanding environments
Pressure Range | -1…0~1…20bar(Gauge);0~1…20bar(Absolute) |
Overload | 1.5x of full scale |
Measuring medium | various liquid, gas or steam compatible with 304 or 316L stainless steel |
Output Signal | 4~20mA,voltage, Modbus-RTU/RS485 |
Accuracy | ±0.5%FS(standard); ±0.2%FS (option) Accuracy according to IEC 60770(nonlinearity, hysteresis, repeatability) |
Long-term Stability | ±0.4%FS/year |
Current resolution | ≤0.01% |
Response time | about 1ms |
Boot time | ≤3s |
Temperature Coefficient of Zero | ±0.05%FS/℃(Reference 25℃) |
Temperature Coefficient of Full Scale | ±0.02%FS/℃(Reference 25℃) |
Working Temperature | -10~85℃ |
Pressure Range | -1…0~1…20bar(Gauge);0~1…20bar(Absolute) |
Overload | 1.5x of full scale |
Measuring medium | various liquid, gas or steam compatible with 304 or 316L stainless steel |
Output Signal | 4~20mA,voltage, Modbus-RTU/RS485 |
Accuracy | ±0.5%FS(standard); ±0.2%FS (option) Accuracy according to IEC 60770(nonlinearity, hysteresis, repeatability) |
Long-term Stability | ±0.4%FS/year |
Current resolution | ≤0.01% |
Response time | about 1ms |
Boot time | ≤3s |
Temperature Coefficient of Zero | ±0.05%FS/℃(Reference 25℃) |
Temperature Coefficient of Full Scale | ±0.02%FS/℃(Reference 25℃) |
Working Temperature | -10~85℃ |
HPM17-RN anti-corrosion pressure transmitter adopts high-performance anti-corrosion ceramic sensor, it uses anti-corrosion plastic as pressure interface, cooperates with electronic conditioning circuit, and is assembled and produced through strict process flow. This product has the characteristics of strong corrosion resistance and wear resistance, and it can complete the pressure measurement and control of corrosive gases, liquids and steam. This product has outstanding anti-corrosion ability, and its full-plastic structure design perfectly copes with the pressure measurement of various corrosive media. It is widely used in the fields of chemical industry, environmental protection, water treatment and scientific research experiments.
Application
Chemical processing
Environmental services
Water purification
Laboratory studies
Features
Tantalum diaphragm, titanium diaphragm, or ceramic core with excellent corrosion resistance
Resilient against shocks, vibrations, and abrasion
Various interfaces, output options, and outlet methods, enabling extensive applications
Well-suited for diverse and demanding environments
Pressure Range | -1…0~1…20bar(Gauge);0~1…20bar(Absolute) |
Overload | 1.5x of full scale |
Measuring medium | various liquid, gas or steam compatible with 304 or 316L stainless steel |
Output Signal | 4~20mA,voltage, Modbus-RTU/RS485 |
Accuracy | ±0.5%FS(standard); ±0.2%FS (option) Accuracy according to IEC 60770(nonlinearity, hysteresis, repeatability) |
Long-term Stability | ±0.4%FS/year |
Current resolution | ≤0.01% |
Response time | about 1ms |
Boot time | ≤3s |
Temperature Coefficient of Zero | ±0.05%FS/℃(Reference 25℃) |
Temperature Coefficient of Full Scale | ±0.02%FS/℃(Reference 25℃) |
Working Temperature | -10~85℃ |
